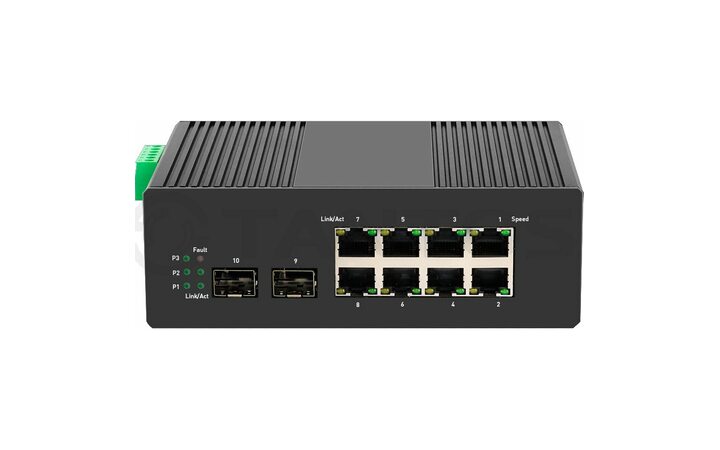

Tantos TSn-8FP10S2MI

Порты 1-8 : 10/100/1000 Мбит Мбит/с PoE порты до 30Вт

9-10: 100/1000 Мбит/с SFP

11 : Консольный порт управления

1 группа тревожных выходов и релейных выходов, пользовательские условия срабатывания

Скорость передачи данных 2000 Мбит/с полный дуплех, 10/100/1000 Мбит/с полудуплех

Расстояние 10/100/1000 Мбит/с при длине кабеля до 100 метров скорость составляет 1000 Мбит/с

Стандарты IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.3z, IEEE802.3afI,EEE802.3at

Коммутационная матрица 20 ГБит/с

Метод передачи Store-and-Forward

Таблица MAC адресов 8К

Буфер 4 Mb

Power Supply Pin Only support 1/2 (+), 3/6 (-) 4-core power supply

PoE Порты 1-8: 1/2(+52В), 3/6(GND) ?30Вт

Power Consumption Standby:<,10W

LED System indicator:SYS(green)

Network Indicator: Link (yellow)

SFP Indicator: L/A (green)

PoE Indicator: PoE (green)

Lightning Protection Lightning protection: 6KV 8/20us

IEC61000-4-2(ESD): 8kV contact discharge, 15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: 4kV

IEC61000-4-5(Surge): power cable:CM4kV/DM2kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V

FCC Part 15/CISPR22(EN55022): Class A

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)

Габариты 155x114.1x51.7мм

Диапазон рабочих температур от -40С до +75С, относительная влажность от 5 до 90% (без конденсата)

Температура хранения от -40С до +85С, относительная влажность от 5 до 90% (без конденсата)

Port Support IEEE802.3x flow control (full duplex)

Support for broadcast storm suppression based on port rate

Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps

Support port temperature protection settings

Support port EEE green Ethernet energy saving configuration

PoE Management Support total power limit configuration for POE power supply

Support PoE output power allocation per port, close / start af/at

Support PoE output priority configuration per port

Support PoE work status per port display

Support PoE work and time scheduling

Layer 3 Function L2+ network management function

Support IPV4/IPV6 management

Support layer3 soft routing (weak three tier) forwarding

Support different network segments, communication between different VLAN

Support static routing / default routing 128, 1024 ARP software forwarding

VLAN Support port based VLAN (4K), IEEE802.1q

Support protocol based VLAN

Support Voice VLAN

Support for MAC address-based VLANs

Support Access, Trunk, Hybrid three types of port configuration

Port Aggregation Support LACP

Support static polymerization

Support the largest 8 aggregation groups

Spanning Tree Support STP (IEEE802.1d)

Support RSTP (IEEE802.1w)

Support MSTP (IEEE802.1s

Industrial Ring Network Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring

Protocol The self-healing time of the ring network is less than 20ms

Diagnostics UDLD

Syslog (RFC3164): Local RAM,Local Flash, 8 Remote Server

Mirroring: 4 sessions port-based (Many to One)

System Diagnostics: CPU Utilization, Memory Utilization, Port Utilization, Technical Support Log

Network Diagnostics: Ping Test, Traceroute

Multicast Support IGMP Snooping V1/V2 and support 1024 multicast groups at most

Support the users quick departure mechanism

Support MLD Snooping V1/V2

Support multicast VLAN

Mirror Bi-directional traffic mirroring supporting the basic port

QoS Support Diff-Serv QoS

Each port supports 8 output queues

Support 802.1p/DSCP priority mapping

Support queue scheduling mechanism (SP, WRR, SP+WRR)

Support priority tag Mark/Remark

Support stream based packet filtering

Support for stream based redirection

Support flow based speed limi

ACL Support L2 to L4 packet filtering function, match the first 80 bytes of the message

Provide based on the source MAC address, destination MAC address, source IP address, destination IP address,

ACL IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition

Support ACL based on port and VLAN

Safety Support user grading management and password protection

Characteristics Support IEEE802.1X authentication / centralized MAC address authentication

Support AAA&RADIUS authentication

Support the number of MAC address learning restrictions

Support MAC address black hole

Support SSH 2.0 to provide secure passwords for user login

Support SSL to ensure data transmission security

Support port isolation

Support the speed limit function of ARP message

Support IP source address protection

Support ARP intrusion detection function

Support against DoS attacks

Support port broadcast message suppression

Support host data backup mechanism

Binding capabilities of IP+MAC+VLAN+ ports

DHCP Support DHCP Client

Support DHCP Snooping

Management And Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration

Maintenance Support WEB network management (HTTPS)

Support FTP, TFTP, Xmodem, SFTP file download management

Support SNMP V1/V2C/V3

Support one bond reduction

Support NTP clock Support system work log Support Ping detection

Support cable state detection

Support CPU instant utilization status view

Support link layer discovery protocol LLDP center

System Requirements Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or

higher, Microsoft Internet Explorer10 or later

Cat5e or later Ethernet cable

TCP/ IP, network adapter and network operating system (Microsoft Windows,

Linux or Mac OS X) installed on on every computer in the network.

Примечание Комплект поставки и любые технические характеристики могут быть изменены производителем в любое время без предварительного уведомления.
